Reed Instruments

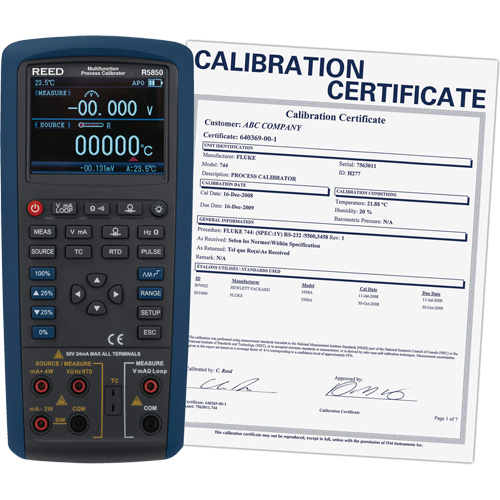

Multifunction Process Calibrator with ISO Certification

Part Number: R5850-NIST Model: ID092
C$ 3,499.81

Sold as: Each

Call For Availability
Available on order as needed.
Please call 647-802-7778 or email info@supplywave.ca
Free shipping on orders over $149*. View Details

Product Details

Portable/Bench top: Portable
Data Logging/ Without Data Logging: Without Data Logging
No. of Processes: 5
DC Voltage: Range: 50, 500mV, 30V (upper display), 50V (lower display); Resolution: 0.001, 0.01, 1mV, 0.001V; Accuracy: 50mV: ±(0.02% +10), 500mV: ±(0.02% +5), 30V (upper display): ±(0.02% +2), 50V (lower display): ±(0.02% +2)
DC Current: Range: 20mA at 0 to 24mA, Resolution: 0.001mA, Accuracy: ±(0.02% +2)
Loop Current: Range: 20mA (loop) at 0 to 24mA, Resolution: 0.001mA, Accuracy: ±(0.02% +2)
Resistance: Range: 500, 5000Ω, Resolution: 0.01, 0.1Ω, Accuracy: ±(0.05% +10)
Frequency: Range: 100Hz, 1, 10, 100kHz, Resolution: 0.01, 0.1, 1Hz, Accuracy: ±(0.01% +1)
Includes: Multifunction Process Calibrator; Test Leads; Test Clips; Type K Thermocouple Wire Probe; USB Cable; Power Adapter; Carrying Case
